Guiding system for cuts 0-45º with Pneumatic Grinder

The Vacuum Suction Guide Rail System is a professional solution designed for straight cutting, mitre cutting, edge polishing and milling on porcelain, porcelain stoneware, Dekton, Neolith, granite, marble, quartz and natural stone.

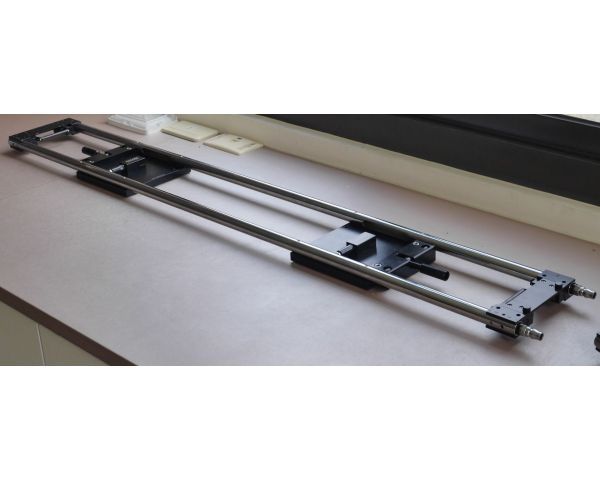

Its robust 1,235 mm guide rail features an innovative integrated vacuum suction system that securely fixes the guide directly onto the workpiece, ensuring exceptional stability while eliminating unwanted movement during machining.

The guide includes a low air consumption integrated vacuum generator, allowing fast installation without requiring complex external vacuum equipment, making it ideal for both workshop and on-site applications.

The system is fully extendable using optional connection kits, allowing multiple 1,235 mm guide rails to be joined together for machining large-format slabs while maintaining outstanding cutting accuracy.

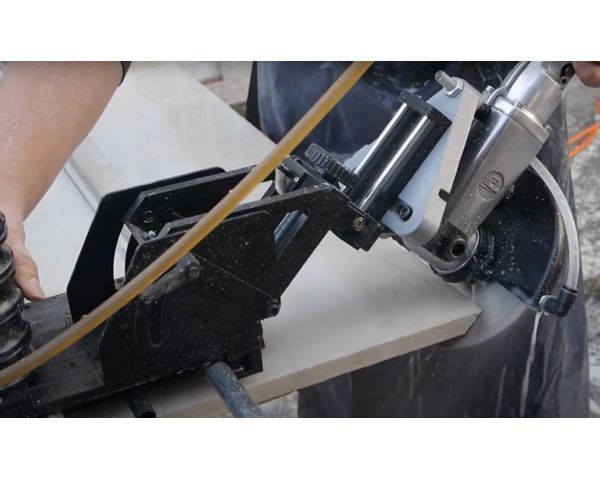

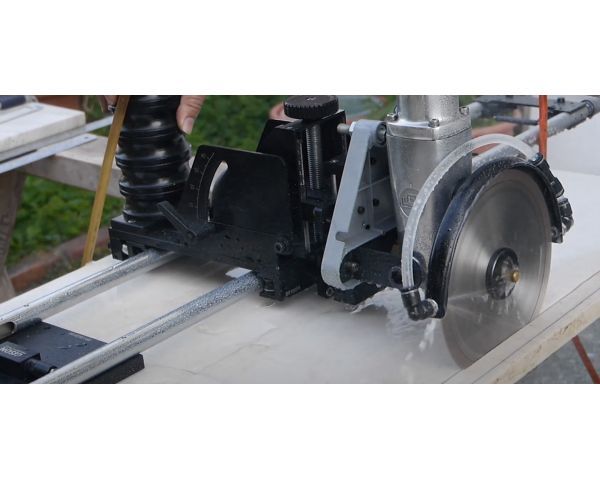

It also accepts various optional adapters for edge polishing, milling and linear machining. By adding the optional 0°–45° cutting adapter, users can perform perfectly straight cuts and highly accurate mitre cuts. This accessory is designed for use with the Pneumatic Grinder 216 (not included).

Its modular construction makes the system an extremely versatile solution for professional stone fabricators, tile installers and construction specialists requiring maximum precision and productivity.

Technical specifications

• Guide length: 1,235 mm
• Extendable with connection kits
• Integrated low-consumption vacuum generator
