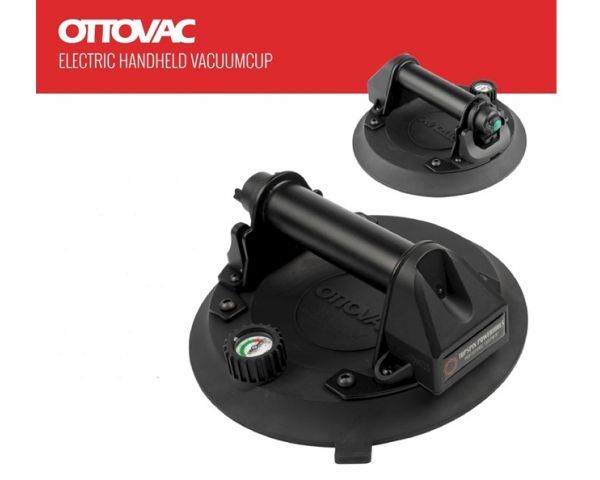

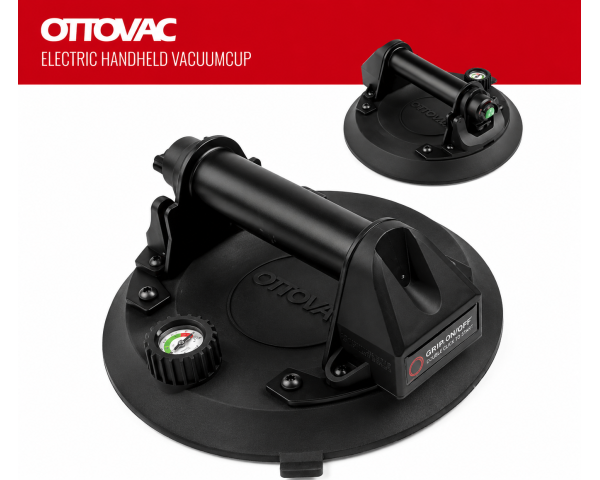

OTTOVAC Manual suction cup

The OTTOVAC electric suction cup is a portable vacuum lifting device designed to lift, move and install smooth, flat and non-porous materials such as glass, granite, marble, porcelain and ceramic safely and efficiently.

Unlike conventional manual suction cups, OTTOVAC features a built-in intelligent pressure sensor with automatic Start/Stop function, maintaining constant vacuum pressure without manual supervision.

When vacuum reaches -55 kPa, the pump automatically stops after three seconds. If pressure drops below that level, the pump automatically restarts, ensuring continuous safe operation.

This guarantees:

• Maximum safety
• Increased productivity
• Reduced risk of release
• Faster and more precise installations

Compact and lightweight (only 1.2 kg with batteries), it is ideal for professional installers, stone fabricators and large-format tile specialists.

Key Features

• Automatic vacuum pressure maintenance
• Built-in pressure sensor
• Lifting capacity up to 200 kg (440 lb)
• Suitable for glass, stone, ceramic and porcelain
• Lightweight and portable
• Designed for professional installation

Technical Specifications

• Applicable surface: Peak/valley < 3 mm, arc < 5°
• Battery: 4 × AA 1.5 V alkaline
• Working voltage: 6 V
• Rated power: 6 W
• Duty cycle: 1500 ON-OFF cycles of 10 seconds
• Service life: >10,000 uses / >800 hours
• Air flow: 4 l/min
• Maximum vacuum: -0.7 bar (-70 kPa)
• Maximum lifting capacity: 200 kg
• Dimensions: 200 × 200 × 90 mm
• Net weight: 1.2 kg
• Operating temperature: 0–60°C
