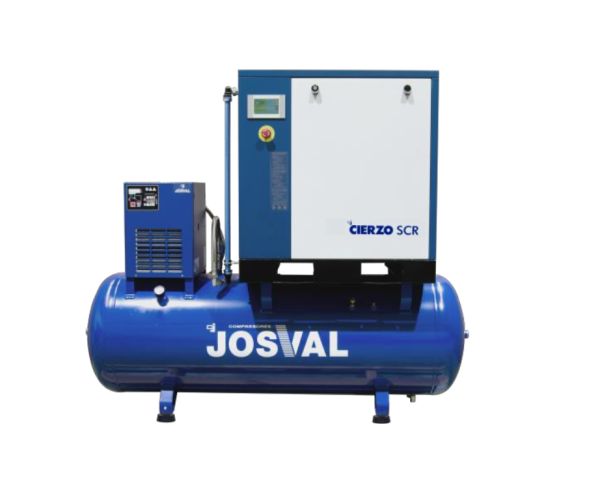

Screw compressor with dryer 11kw. 500lts.

The 15 HP 500 L Rotary Screw Air Compressor with Integrated Dryer is designed for businesses that require a continuous supply of clean, dry and reliable compressed air for demanding industrial applications. Its integrated refrigerated air dryer removes moisture from the compressed air system, protecting pneumatic tools, CNC machinery and industrial equipment from condensation and corrosion.

Its direct gear drive transmission and low-RPM operation ensure outstanding energy efficiency, quiet performance and extended service life while significantly reducing maintenance requirements.

The compressor features star-delta starting, an air inlet valve with solenoid control, a temperature sensor and an advanced electronic control panel with comprehensive motor protection and automatic rotation direction monitoring, ensuring safe and reliable operation.

Delivering 15 HP (11 kW), 1,400 l/min (84 m³/h) at 10 bar and equipped with a 500-litre air receiver, it is the ideal solution for production lines, manufacturing facilities and heavy-duty industrial applications.

Features

• Power: 15 HP (11 kW).
• Power Supply: 400 V (Three-phase).
• Tank Capacity: 500 litres.
• Air Delivery: 1,400 l/min (84 m³/h).
• Maximum Pressure: 10 bar.
• Type: Rotary screw air compressor with integrated refrigerated dryer.
