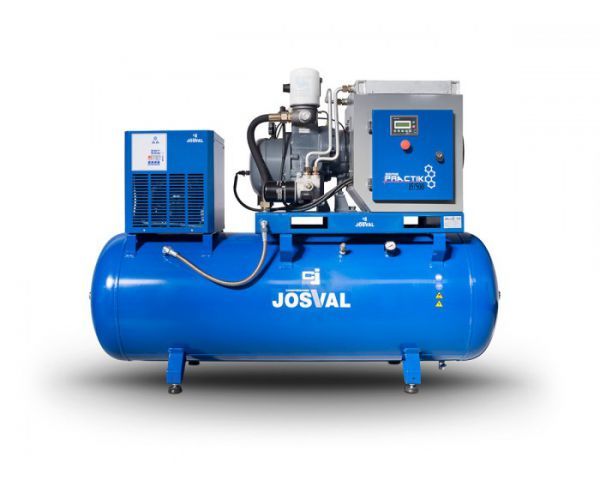

Screw compressor with dryer 5,5kw. 500lts.

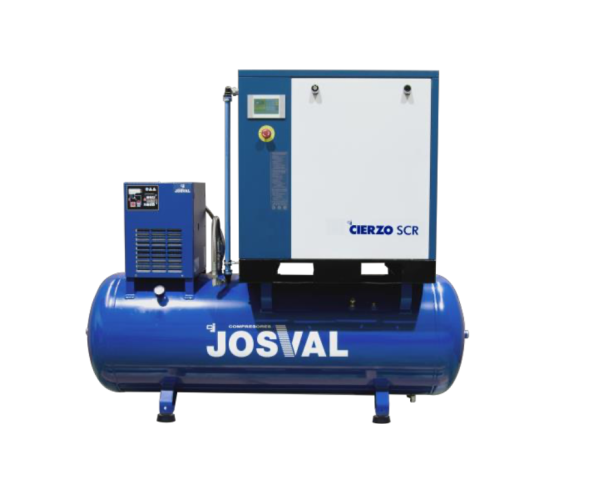

The CIERZO SCR 7.5 HP 500 L is a rotary screw air compressor with an integrated refrigerated dryer, engineered to provide a continuous supply of clean, dry and efficient compressed air for industrial facilities and professional workshops. Its robust construction and advanced technology ensure outstanding reliability, low energy consumption and reduced maintenance requirements.

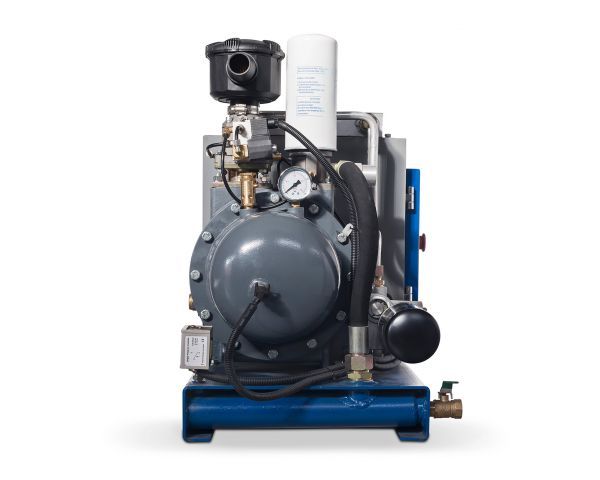

Featuring a direct gear-driven transmission and low-speed (RPM) operation, this compressor delivers stable performance while minimizing mechanical wear and extending the service life of the equipment. The integrated refrigerated dryer removes moisture from the compressed air, protecting pneumatic tools, machinery and production processes.

The unit is equipped with a star-delta (Y-Δ) starting system, air inlet solenoid valve, temperature sensor, and an advanced electronic control system that continuously monitors compressor operation while protecting it against overloads, short circuits, phase failure and incorrect rotation direction. Its maintenance-friendly design also provides easy access to internal components, reducing service time and operating costs.

With 7.5 HP (5.5 kW), a 500-litre air receiver, an air delivery of 800 l/min (48 m³/h) at 10 bar, and an exceptionally low noise level of only 63 dB(A), the CIERZO SCR is the ideal solution for production lines, pneumatic equipment and continuous industrial operation.

Key Features

• Rotary screw air compressor with integrated refrigerated dryer.
• 7.5 HP (5.5 kW) motor.
• 500 L air receiver.
• 800 l/min (48 m³/h) air delivery.
• Maximum working pressure of 10 bar.
