Screw compressor with dryer 7,5kw. 500lts.

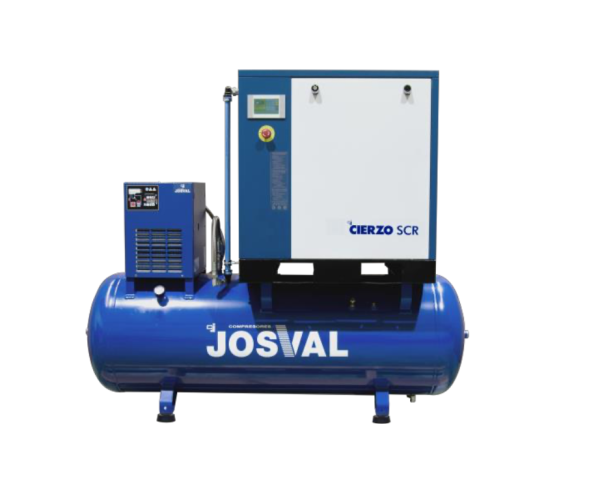

The CIERZO SCR 10 HP 500 L is a rotary screw air compressor with an integrated refrigerated dryer, designed to deliver a continuous supply of clean, dry and efficient compressed air for demanding industrial environments and workshops. Its robust construction and premium components ensure outstanding performance, maximum reliability and reduced maintenance costs.

Featuring a direct gear-driven transmission and low-speed operation, this compressor minimizes mechanical wear, improves energy efficiency and guarantees long-lasting performance, even under continuous-duty conditions. The integrated refrigerated dryer removes moisture from the compressed air, protecting pneumatic tools, production equipment and industrial processes.

The unit is equipped with a star-delta (Y-Δ) starting system, air inlet solenoid valve, temperature sensor, emergency stop button, and an advanced electronic controller that continuously monitors compressor performance while protecting the motor against overloads and operating faults.

With 10 HP (7.5 kW), a 500-litre air receiver, and an air delivery of 1,100 l/min (66 m³/h) at 10 bar, the CIERZO SCR provides a reliable and continuous compressed air supply for production lines, pneumatic equipment and heavy-duty industrial applications.

Key Features

• Rotary screw air compressor with integrated refrigerated dryer.
• 10 HP (7.5 kW) motor.
• 500 L air receiver.
• 1,100 l/min (66 m³/h) air delivery.
• Maximum working pressure of 10 bar.
