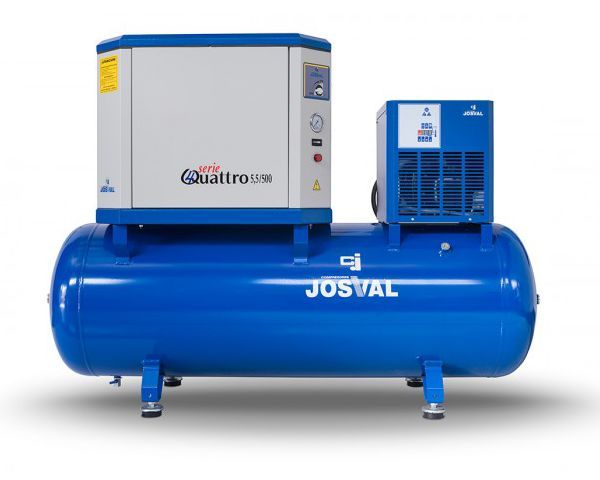

Soundproofed piston compressor with dryer 5,5kw. 500lts.

The 7.5 HP 500 L Silent Piston Air Compressor with Integrated Dryer is a professional solution designed for businesses requiring powerful, low-noise compressed air with integrated moisture removal. Its soundproof enclosure and built-in refrigerated air dryer ensure reliable operation while protecting pneumatic equipment and compressed air systems from condensation.

Powered by a 7.5 HP motor, featuring a 500-litre air tank and an air delivery of 820 l/min, it provides a continuous air supply for pneumatic tools, CNC machinery, production lines and industrial applications.

Its compact and heavy-duty design allows easy maintenance, while the advanced cooling and monitoring systems guarantee excellent thermal performance and long service life under demanding operating conditions.

Features

• Power: 7.5 HP.
• Power Supply: 380–400 V (Three-phase).
• Tank Capacity: 500 litres.
• Air Delivery: 820 l/min.
• Dimensions: 1930 × 700 × 1470 mm.
• Weight: 300 kg.
• High-strength cast iron cylinders.
• Dynamically balanced dual-support crankshaft.
• High-performance stainless steel valve plates.
• One-piece connecting rods with needle bearings to reduce friction and vibration.
• Aluminium crankcase for improved heat dissipation.
• Double Wind Geometry (NACA) aluminium pulleys providing 25% greater cylinder head cooling.
